Before the automatic positioning device was introduced, roller stands were installed on the left and right sides of metal saw blade cutting machine (delivered in 2012), and dimensions were measured with measuring tapes attached to the stands. However, cutting process had the following issues:

[Issues in cutting process]

1. To see the measuring tape attached to the roller stand, you need to stand on a footstool, which creates a risk of falling.
②Dueto the deterioration of the roller stand, it is difficult to determine accurate dimensions.
3) It takes time to adjust the dimensions.

In response to these issues, Kanesou Co., Ltd. placed importance on conducting risk assessments and reflecting the opinions of on-site workers, and based on this intention, we proposed the use of an automatic positioning device.

The deciding factors for the introduction were the elimination of the risk of tipping over (1), the flexible response to residual risks (2), and the ability to achieve high-precision positioning of ±0.1 mm.

*Residual risk:Risk that remains even after risk countermeasures have been implemented (Click here for specific residual risk countermeasures at Kanesou Co., Ltd.)

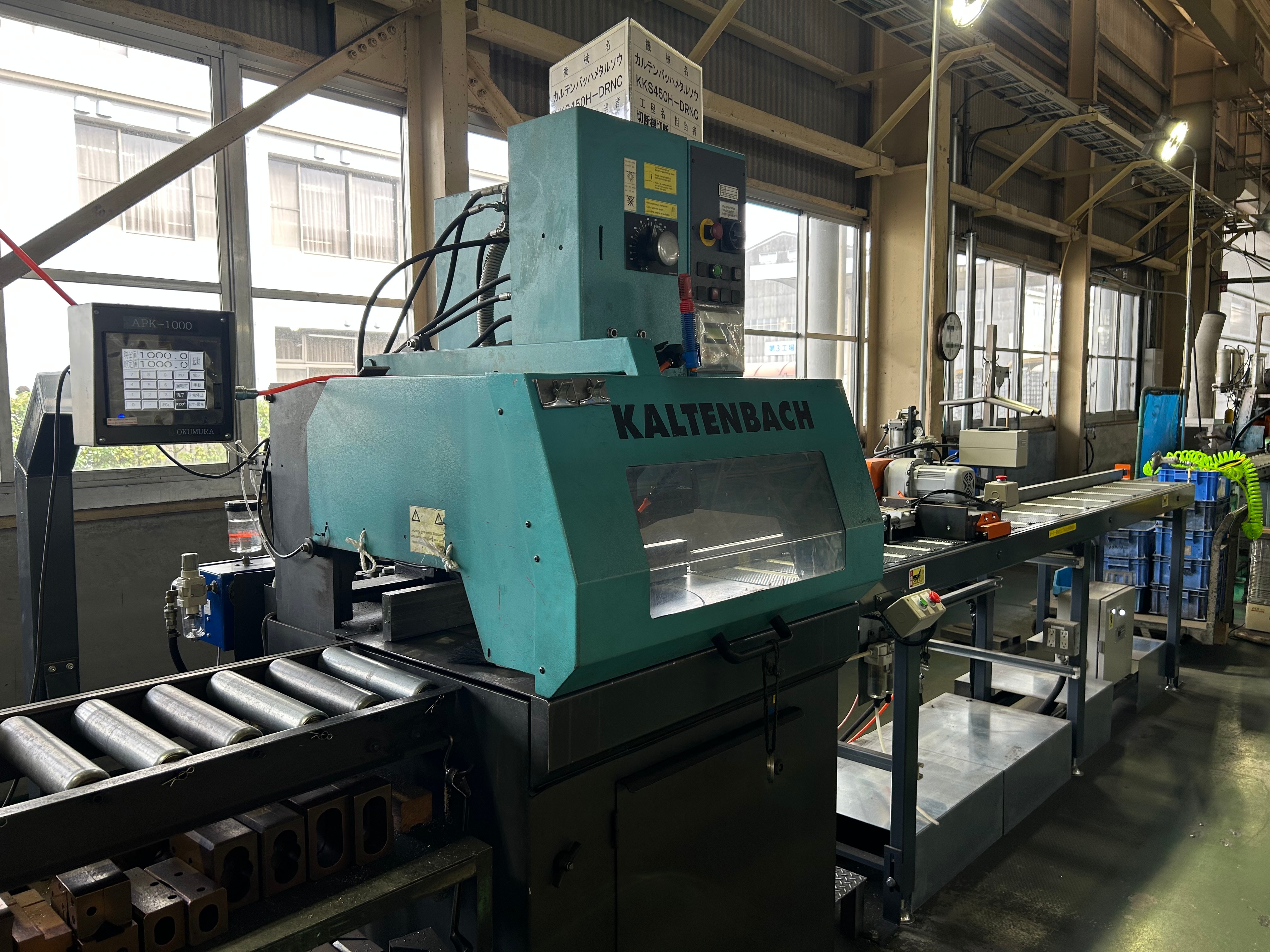

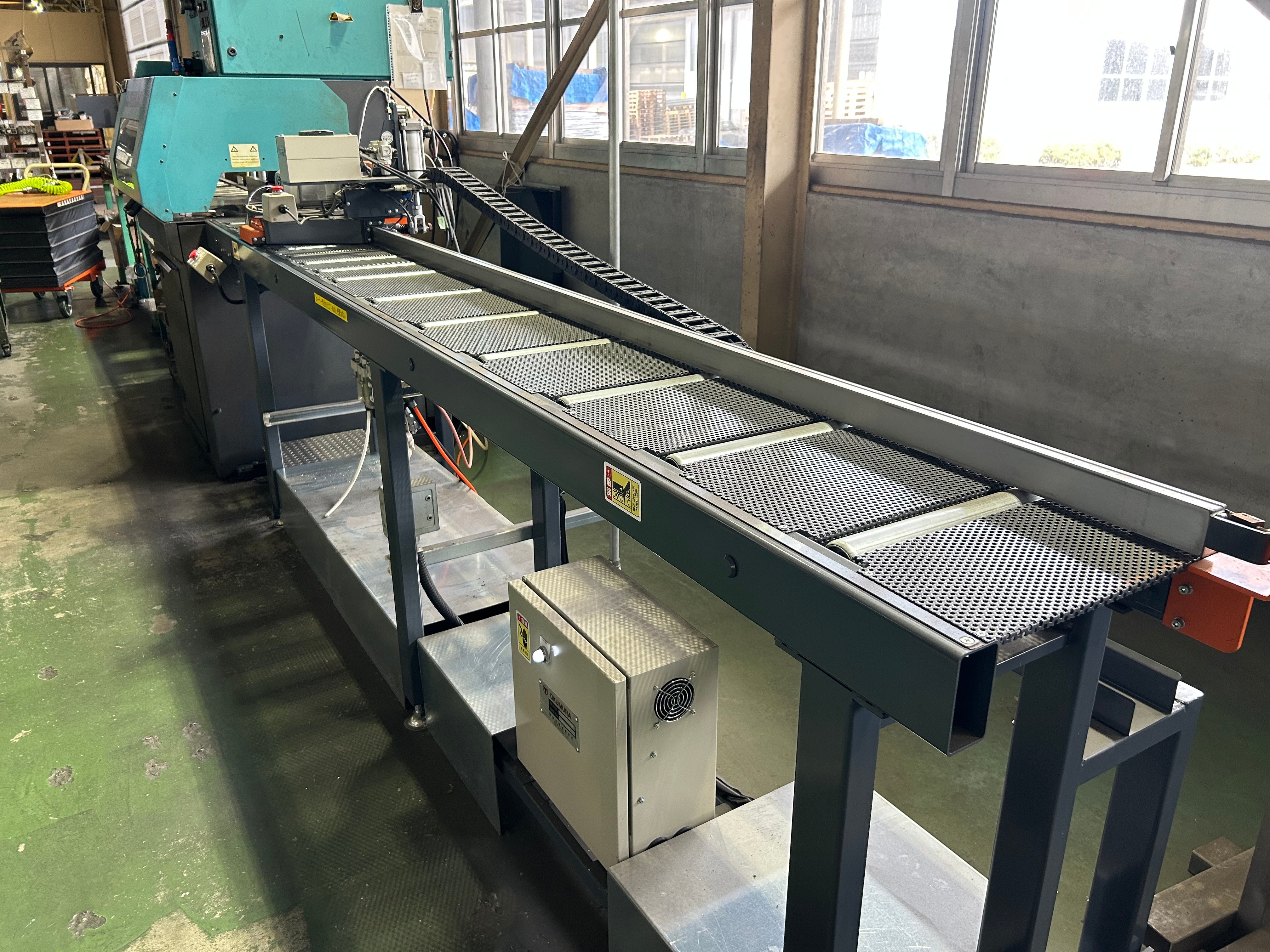

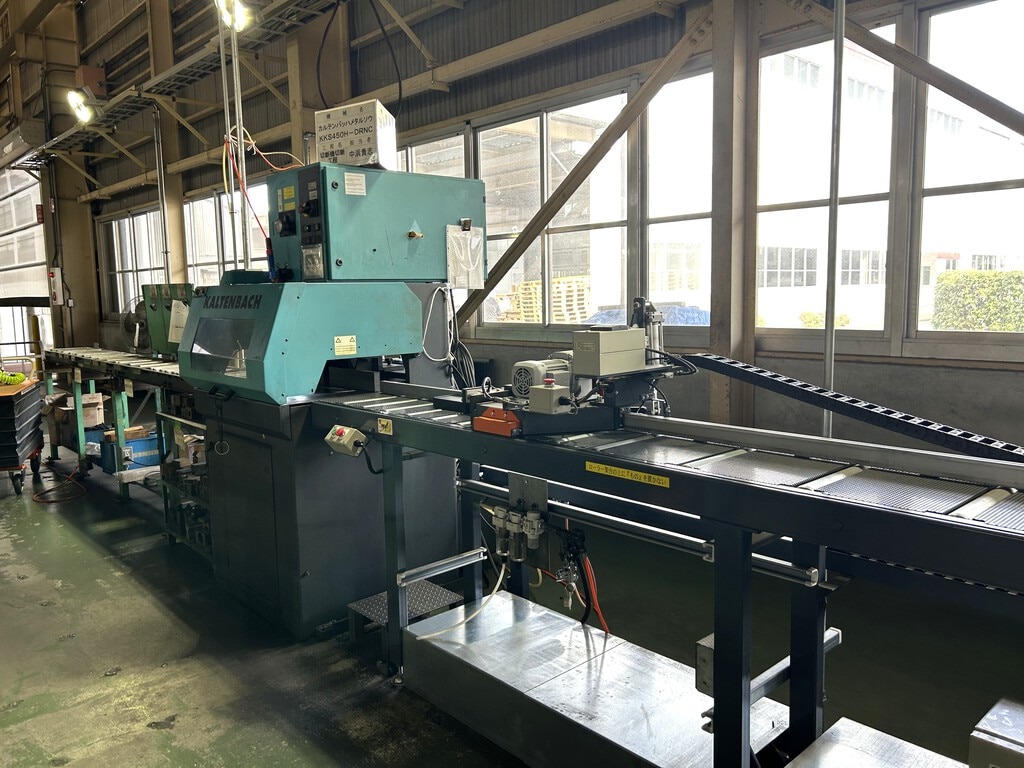

At Kanesou Co., Ltd.,Kaltenbach Semi-Automatic metal saw blade cutting Machine KKS450H-DRNCThe machine is used in combination with the APKS1000-30R automatic positioning device. Products manufactured using these machines include the following:

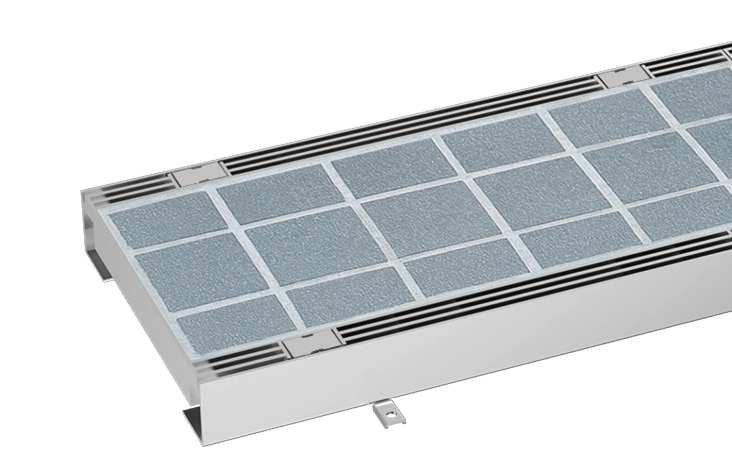

Colored paving groove cover

Steel grooved slit groove cover

1. Improved safety and optimized flow lines

②Improved cutting accuracy and work efficiency

Previously, a footstool was required to visually check the measuring tape attached to the roller stand before and after cutting to confirm the dimensions, but now thatdimensions can be set completely on the touch panel, the footstool is no longer necessary, eliminating the risk of tipping over.

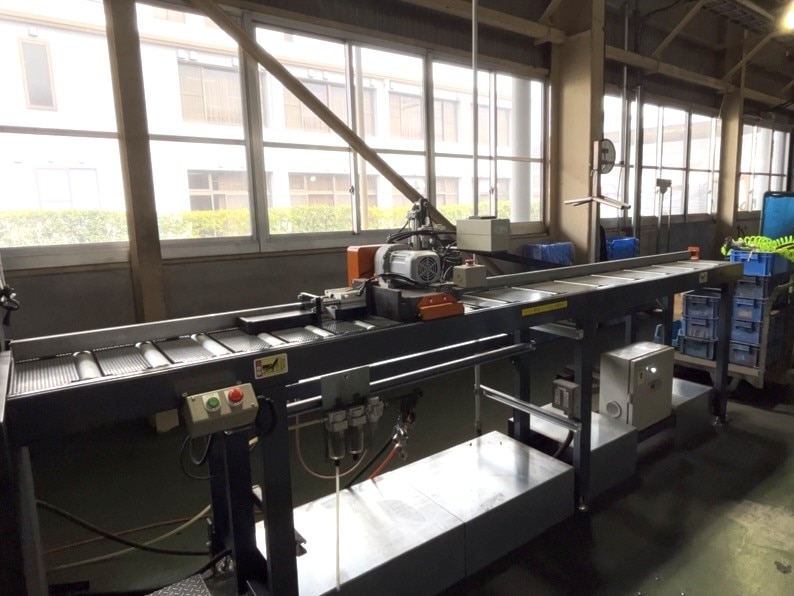

In addition, the control panel, which is on the right side of the standard cutting machine, has been custom-made to be installed independently on the left side, improving the worker's workflow. This eliminates unnecessary movement, such as operating the touch panel on the right side of cutting machine body and then moving to the left side to set the material.

Previously, dimensions were checked before and after cutting using a measuring tape attached to the roller stand, but after the introduction of the system, it is now only necessary to check after cutting. Simply input the set value into the touch panel and start, and the fixed size stopper will automatically move, which has improved the work efficiency of cutting process by approximately 50%.

Before the positioning device was introduced, the position had to be determined manually by leaning forward while standing on a footstool and looking at the measuring tape attached to the roller stand.

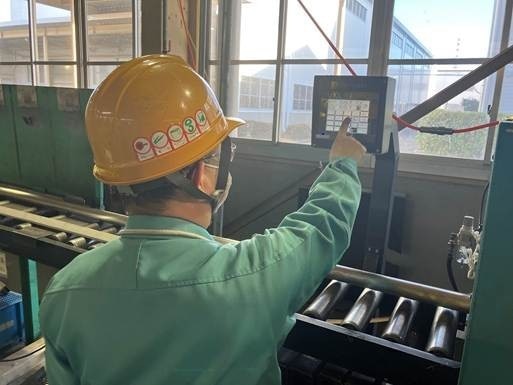

After the installation, automatic settings became possible using the touch panel as shown in the photo on the right, improving safety and accuracy.

Click to enlarge image.

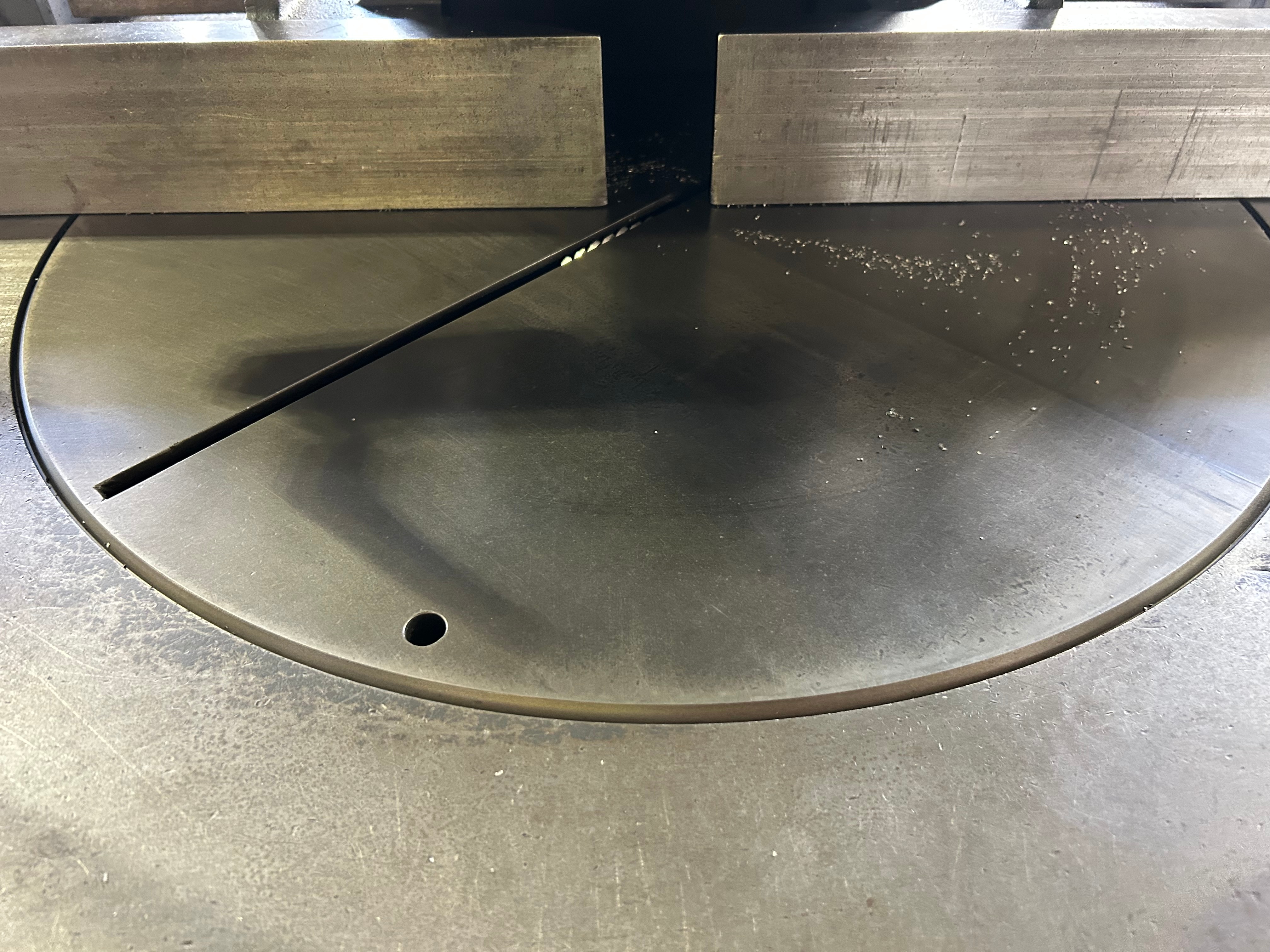

The Kaltenbach semi-automatic metal saw blade cutting machinecan automatically change the angle (optional).
It has been well received for its rigidity, miter cutting, and safety provided by the cover.

Between the fixed size stopper and the roller
Eliminate gaps to prevent fingers from getting stuck.

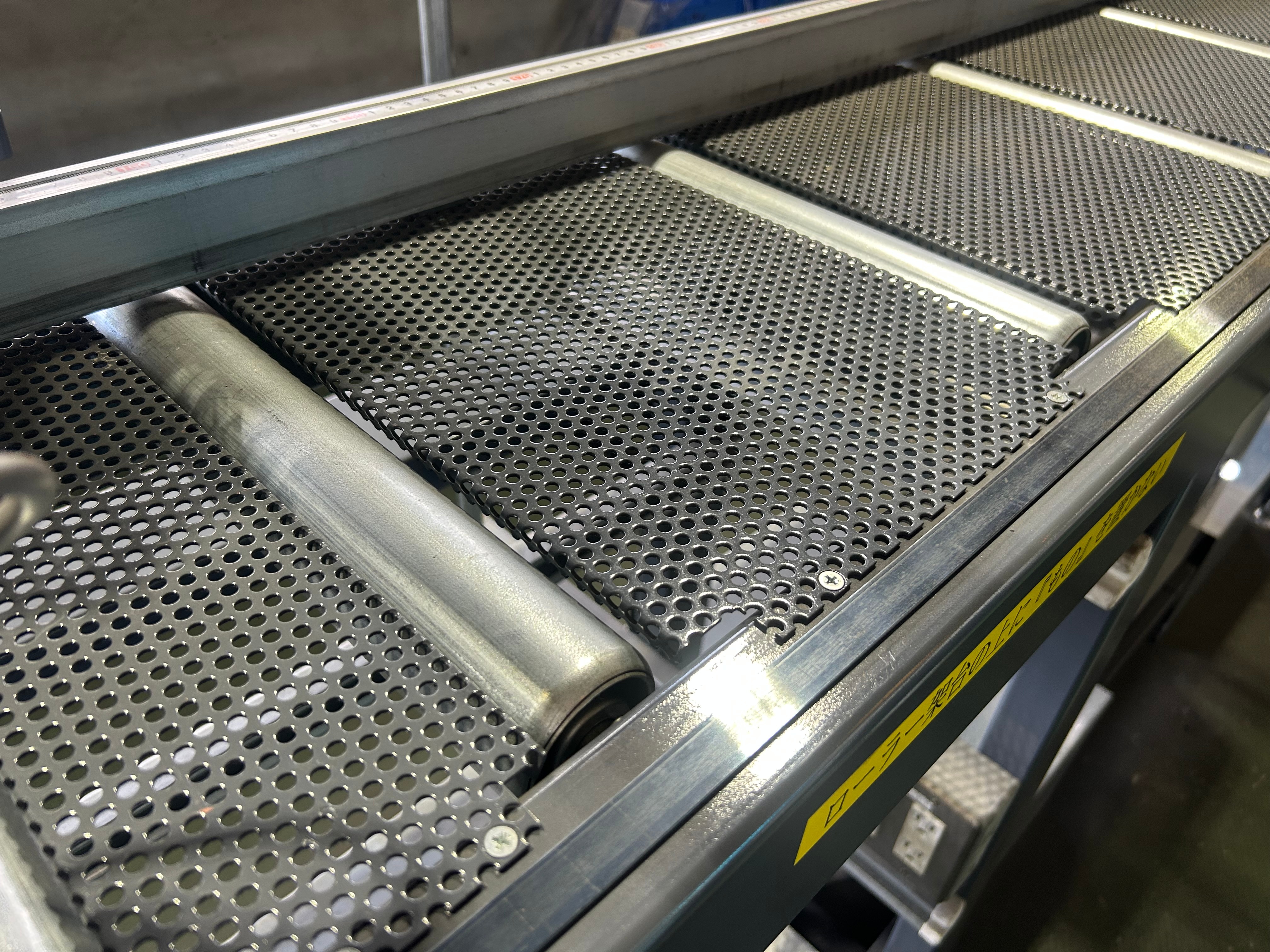

To eliminate gaps between rollers,
Insert the plate.

When the device is operating, a warning sound will sound.
Communicate the work status.

In order to "give shape to the dreams of its customers," Kanesou Co., Ltd. places great importance on creating an environment where employees can feel safe and can demonstrate their abilities. In addition to ISO14001 (environmental management system) and ISO9001 (quality management system), the company has obtained ISO45001 (occupational health and safety management system) certification, and is working to create a safe and comfortable workplace while also producing high-quality products.

We will continue to offer suggestions and support to help promote these initiatives.
